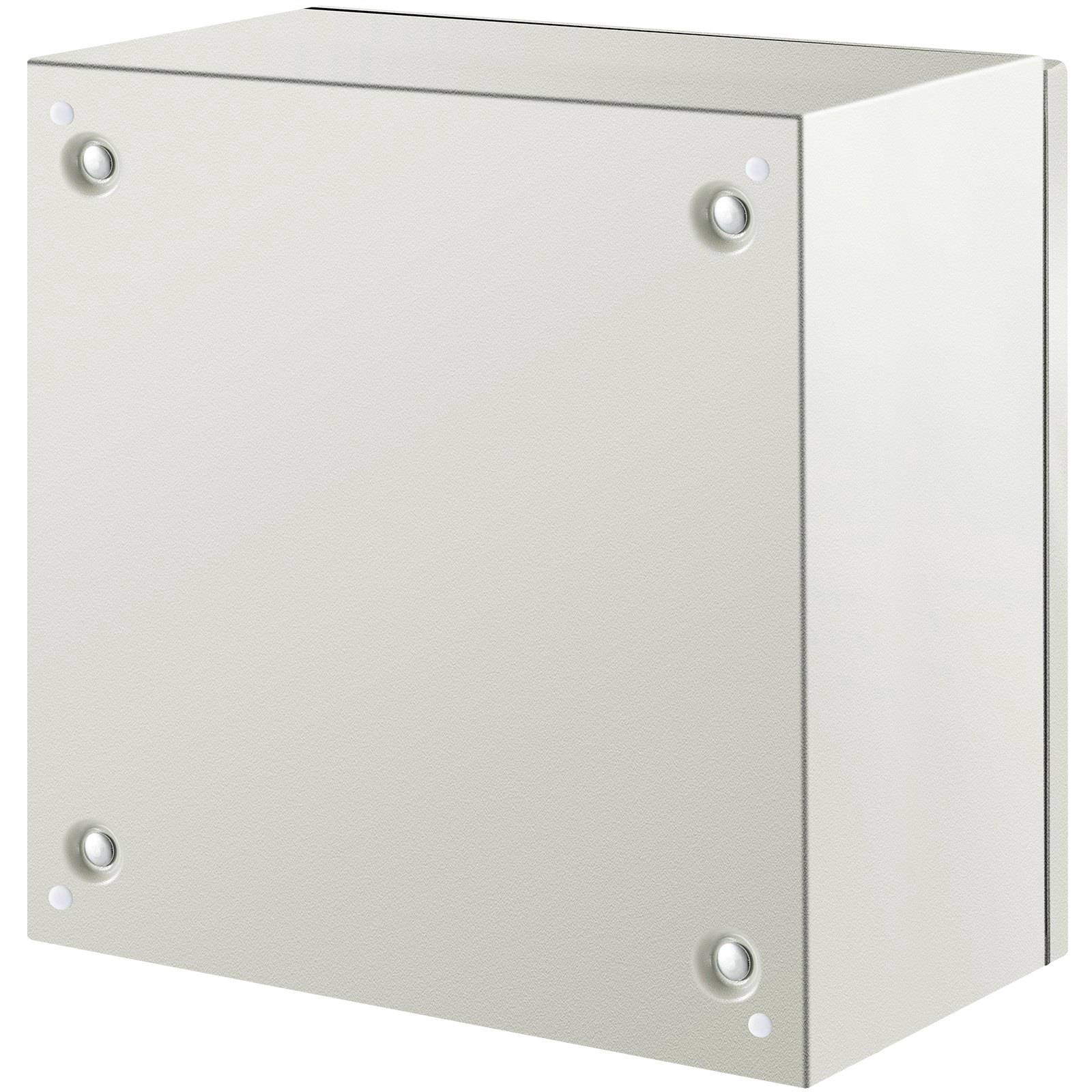

NEMA 4X Steel Electrical Enclosure 40x40x20 cm, IP66

NEMA 4X Steel Electrical Enclosure 40x40x20 cm, IP66

Product form
Item number: 11369107620167

Outdoor electrical junction box protection starts with this NEMA 4X steel enclosure, designed to keep controls and wiring shielded from... Read more

Currently unavailable

€225,99  €204,99

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

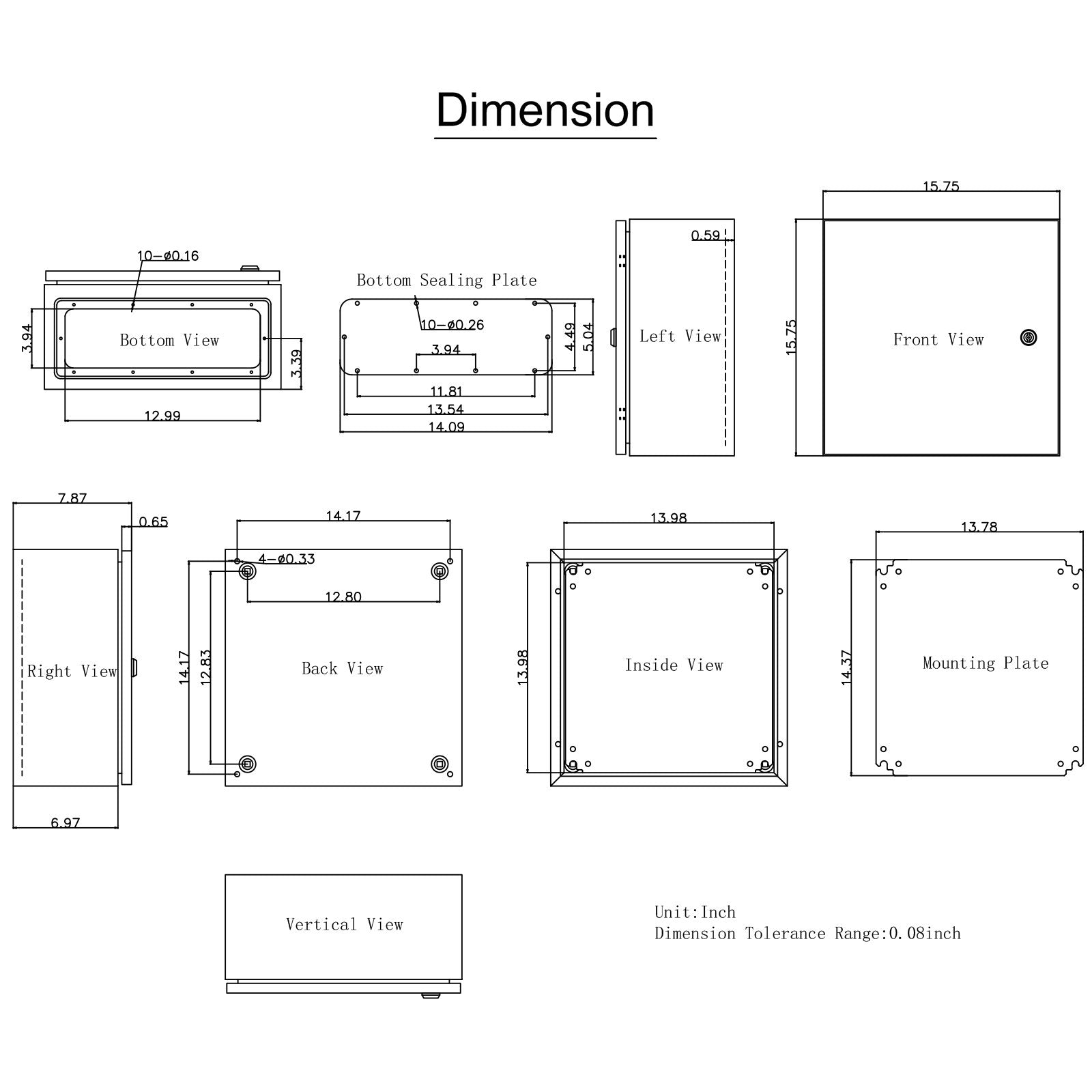

    Outer dimensions (H x W x D)16" x 16" x 8" (40 x 40 x 20 cm)
    Inner dimensions (H x W x D)15.6" x 15.6" x 6.6" (39.7 x 39.7 x 16.65 cm)
    Enclosure material1.5 mm (0.059") cold-rolled carbon steel
    Mounting plate2.0 mm (0.079") detachable galvanized backplate
    Backplate size13.8" x 13.8" (35 x 35 cm)
    Protection ratingsDesigned to meet IP66 and NEMA 1, 2, 4, 4X, 12
    FinishEpoxy polyester powder coating
    ColorGray White (RAL7035)
    Door typeHinged; Feature: Lockable
    CertificationsCE, ROHS
    Weight24.69 lb (11.2 kg)

    Description

    Outdoor electrical junction box protection starts with this NEMA 4X steel enclosure, designed to keep controls and wiring shielded from water, dust, and impact. The IP66-rated sealed door, reinforced hinge, and lockable latch help secure sensitive components in indoor or outdoor installations. Built from cold-rolled carbon steel with a powder-coated finish, it’s made for service panels, control systems, and utility connections where reliable enclosure performance matters.

    Choose this lockable steel electrical enclosure when you need a clean, code-minded way to organize breakers, relays, terminals, or control modules. The gasketed door helps keep moisture and debris out during daily use, while the powder-coated steel body supports demanding sites like workshops, courtyards, construction areas, and industrial spaces. Set your components on the removable backplate, route wiring through the bottom, and close up with confidence. Grab yours today to keep your electrical setup protected and easier to service.

    Specifications
    • Delivers IP66 sealing to resist dust and water ingress for indoor/outdoor electrical installs

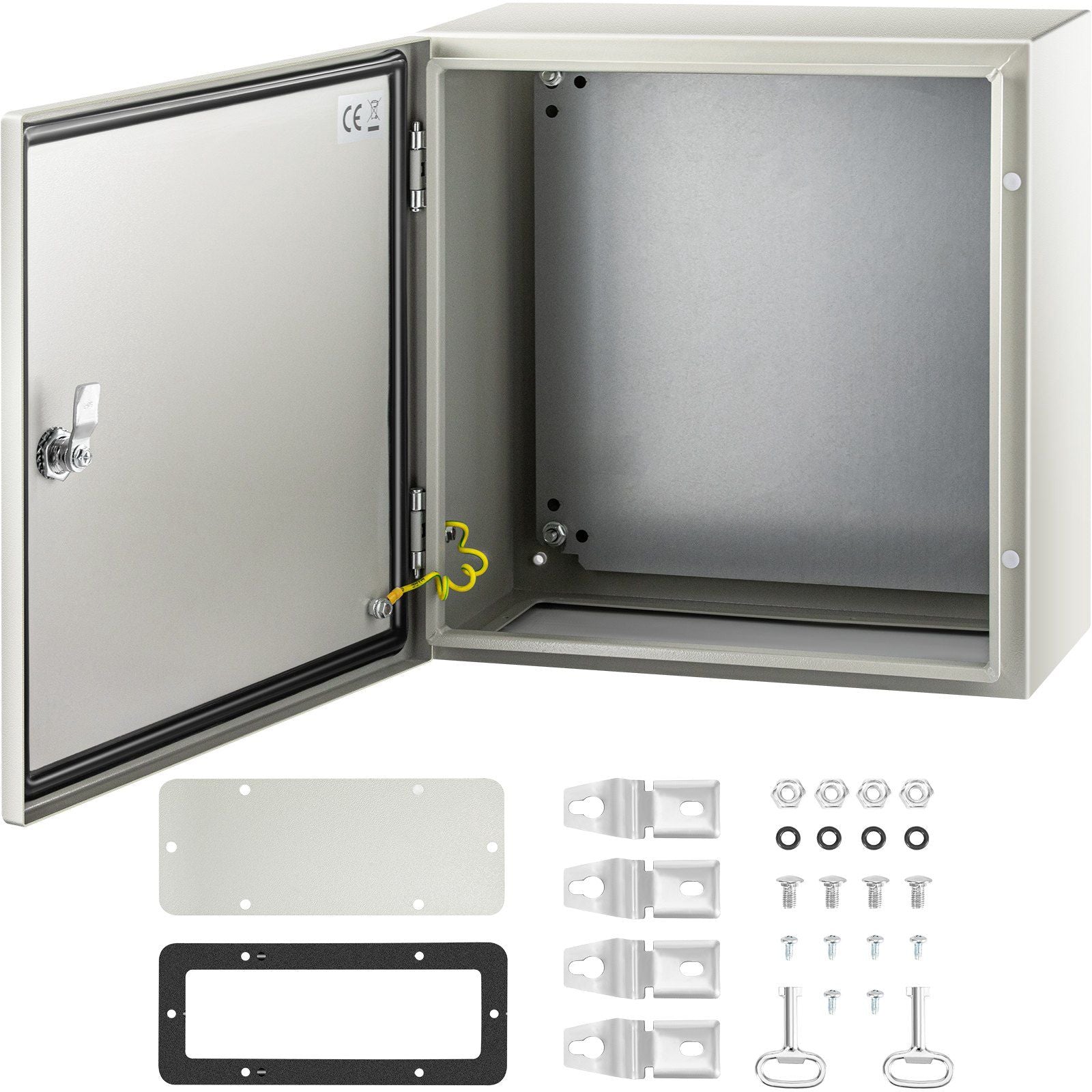

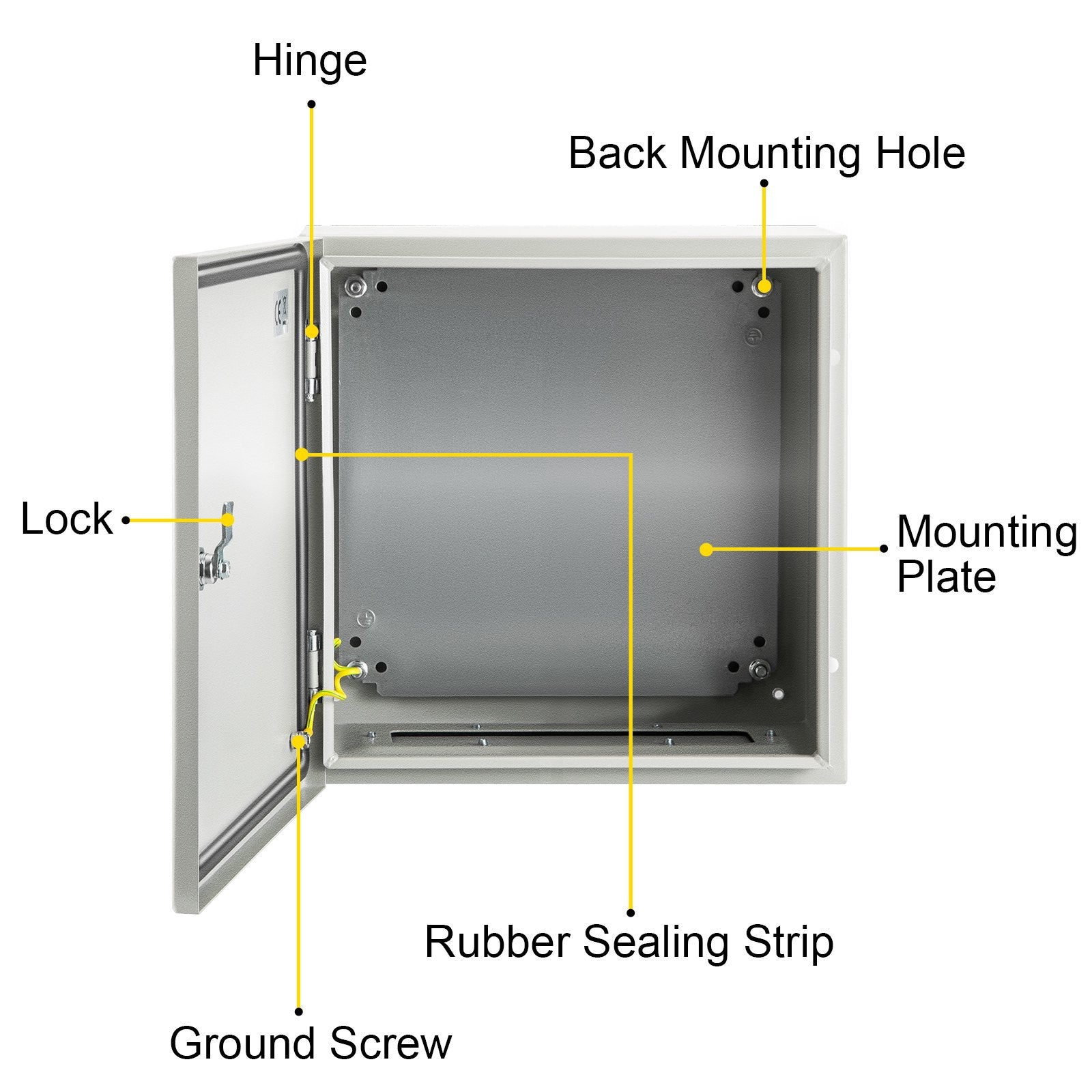

    • Includes a detachable galvanized mounting plate for fast component layout and wiring
    • Secures equipment with a lockable door and reinforced hinge to reduce tampering risk
    • Mounts easily using four rear wall-mount holes for quick, stable installation
    • Protects cables with smooth cutouts, bottom-friendly routing, and pre-installed grounding screws
