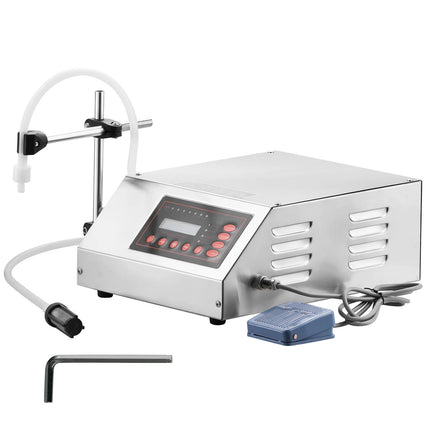

Automatic Liquid Filling Machine, 5–3500 ml, LCD Pump

Automatic Liquid Filling Machine, 5–3500 ml, LCD Pump

Product form
Item number: 11368560951623

Automatic liquid filling machine for 5–3500 ml helps you portion low‑viscosity liquids with fast, repeatable dosing for cleaner, more efficient... Read more

Currently unavailable

€172,99  €156,99

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    Filling volume range5–3500 ml (0.18–123.2 oz)
    Repeat error<0.5%
    Max flow rate3.2 L/min (0.8 gal/min)
    Filling speed5–30 bottles/min (application dependent)
    Nozzle diameter8 mm (0.31 in)
    Max suction distance2 m (6.6 ft)
    Compatible tubing17# soft tube (ID 6.4 mm; thickness 1.6 mm; max pressure 0.24 MPa)
    Functionsanti-drip, auto counting, power-off memory
    Material304 stainless steel housing
    Power30 W
    VoltageAC 180–260 V
    Product size35 × 27 × 15 cm (13.8 × 10.7 × 5.9 in)
    Net weight5.5 kg (12.1 lb)

    Description

    Automatic liquid filling machine for 5–3500 ml helps you portion low‑viscosity liquids with fast, repeatable dosing for cleaner, more efficient bottling. Digital microcomputer control with an LCD display lets you set fill volume and track counts at a glance, while auto and foot‑pedal manual modes adapt to batch runs or single fills. Stainless steel housing and an anti-drip nozzle reduce mess and product loss during operation.

    Built for daily production, this digital liquid filler combines low power draw with stable pump performance and easy volume adjustment on the LCD control panel. The 304 stainless steel shell resists corrosion from common liquid types, and cooling vents help the unit run longer sessions. Ideal for food, cosmetic, lab, and light industrial packaging where accuracy and cleanliness matter. Grab yours today and streamline your filling line with fewer drips and faster changeovers.

    Specifications
    • Delivers adjustable fills from 5–3500 ml with repeat error <0.5% for consistent results
    • Switches between Auto continuous filling and Manual foot switch for precise single doses
    • Reduces spills with an anti-drip nozzle and integrated filter to help keep work areas clean
    • Handles faster workflow with max 3.2 L/min flow rate and typical 5–30 bottles/min speed
    • Supports broad use for water, oils, beverages, vinegar, milk, and other low-viscosity liquids
