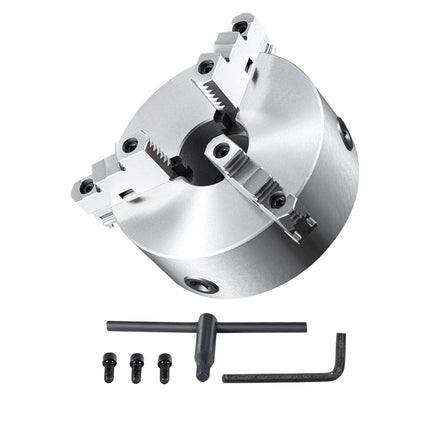

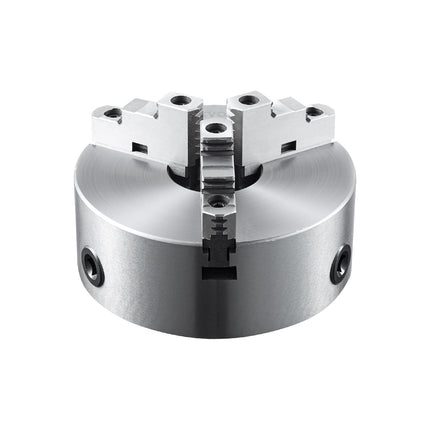

8 in 3-Jaw Lathe Chuck, Self-Centering, 4-200 mm Range
8 in 3-Jaw Lathe Chuck, Self-Centering, 4-200 mm Range
8-inch self-centering lathe chuck delivers fast, repeatable workpiece holding to reduce setup time and improve turning accuracy. Built with an... Read more
€254,99 €230,99
Pay securely with
- Free shipping
- 30-day returns
- Secure checkout
Specifications
| Chuck type | 3-jaw self-centering |
|---|---|
| Chuck OD | 8 in / 200 ± 5 mm |
| Internal clamping range | 4–85 mm (0.157–3.346 in) |
| External clamping range | 70–200 mm (2.76–8 in) |
| Bore | φ65 mm |
| Main body material | HT300 |
| Jaw material/hardness | 20Cr, ≥53 HRC |
| Scroll material/hardness | 40Cr, ≥45 HRC |
| Bearing tolerance | ≤0.05 mm / 0.002 in |
| Surface treatment | oil coated; Ra < 0.8 |
| Fixed thread | 3-M10 |
| Product size | φ200 × 160 mm |
| Net weight | 27.1 lb / 12.3 kg |
