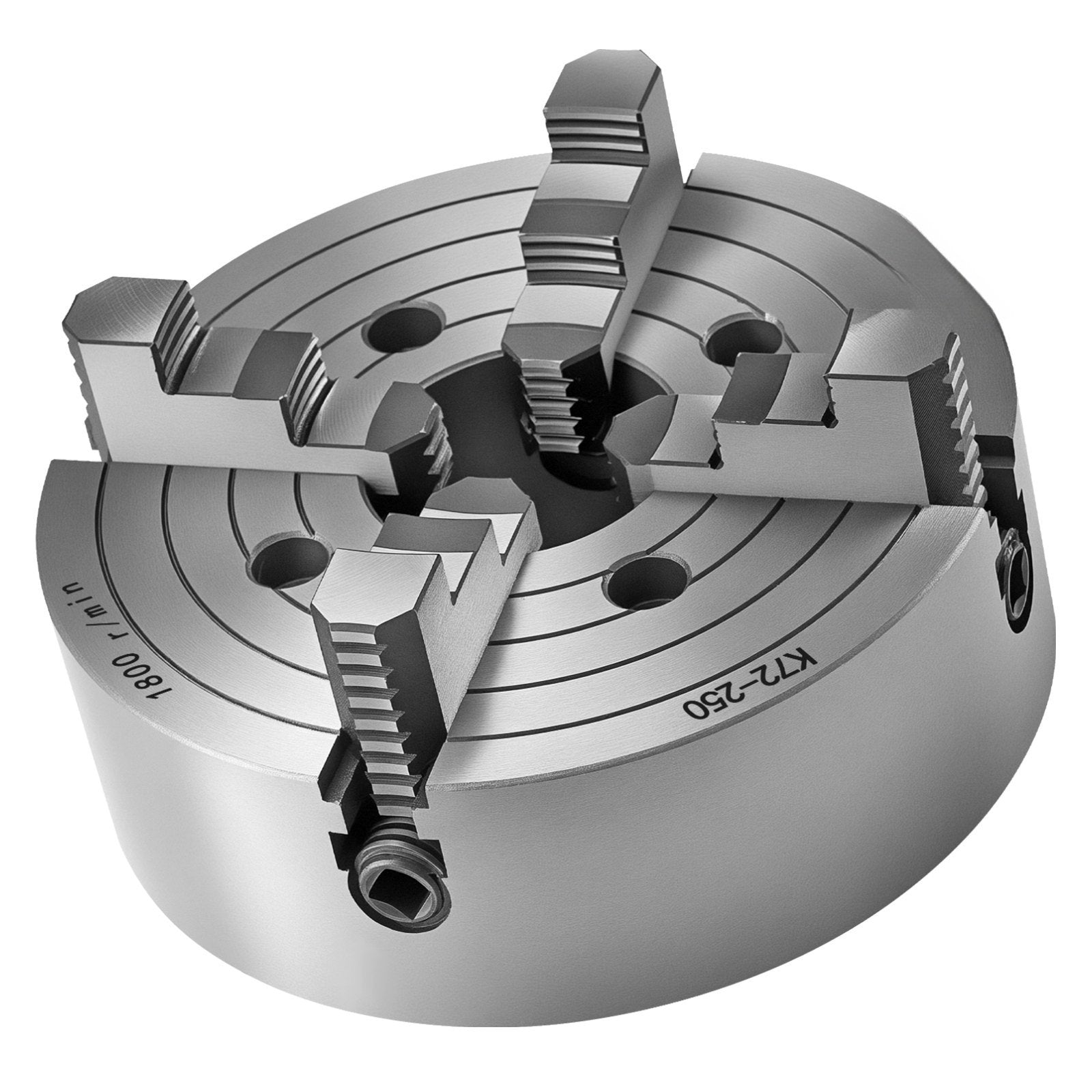

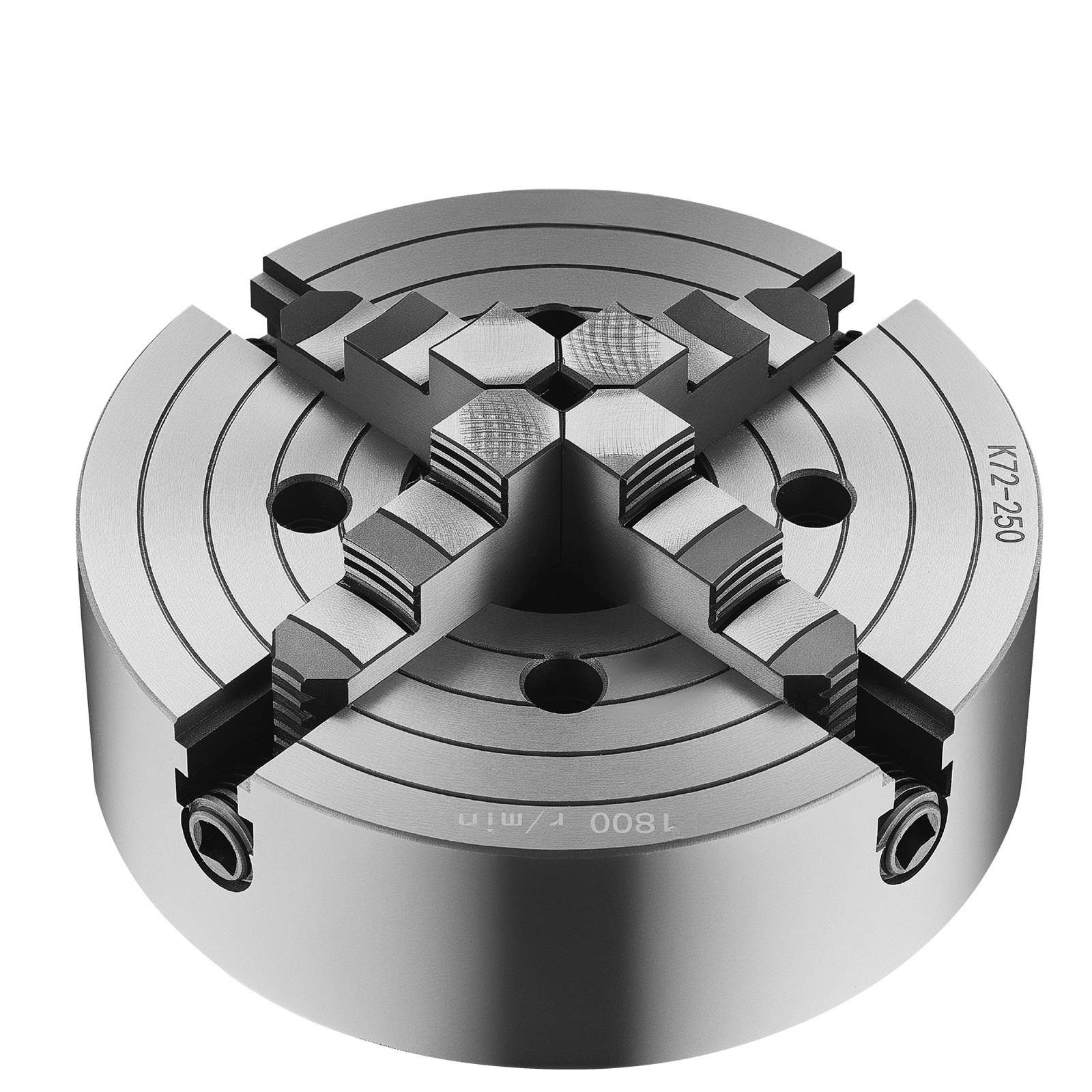

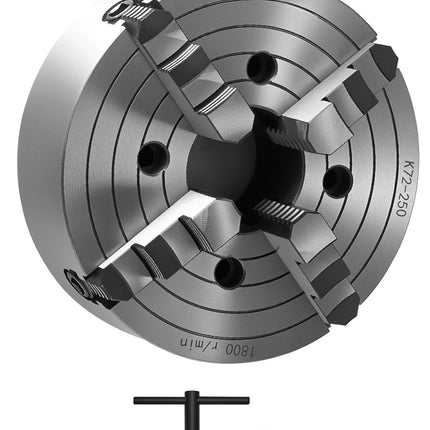

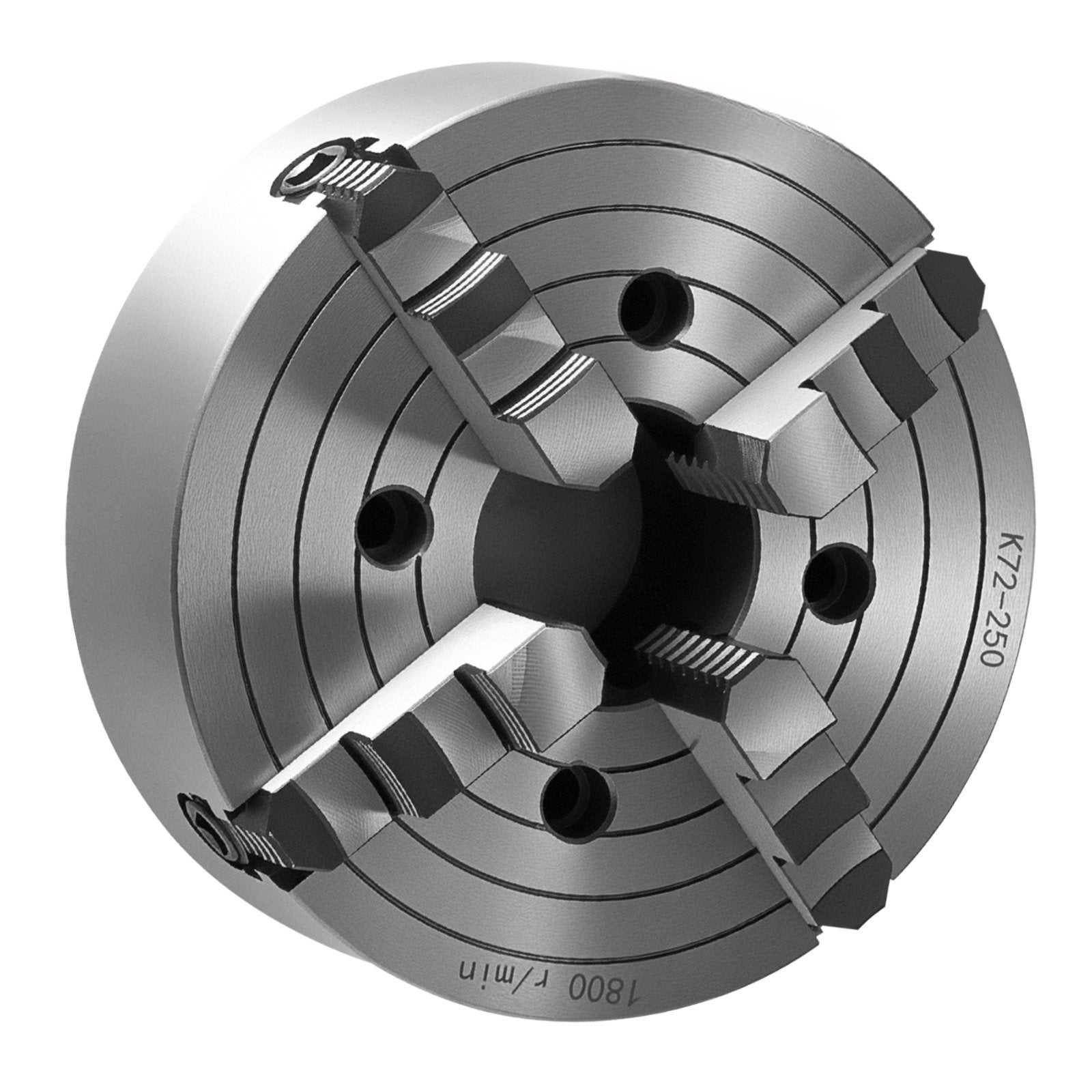

10-Inch 4-Jaw Lathe Chuck, Self-Centering, Reversible Jaws
10-Inch 4-Jaw Lathe Chuck, Self-Centering, Reversible Jaws
4-jaw lathe chuck delivers strong, stable clamping for accurate turning on wood and metal lathes. The 10 in (250 mm)... Read more
€346,99 €314,99
Pay securely with
- Free shipping
- 30-day returns
- Secure checkout
Specifications
| Type | 4-jaw self-centering lathe chuck with reversible jaws |
|---|---|
| Outer diameter | 10 in / 250 mm |
| Inner diameter | 3.15 in / 80 mm |
| Dimensions | φ9.84 × 4.72 in / φ250 × 120 mm |
| Internal jaw clamping range | 0.6–9.84 in / 15–250 mm |
| External jaw clamping range | 3.15–9.84 in / 80–250 mm |
| Material | HT300 cast iron |
| Jaw hardness | ≥53 HRC; scroll plate hardness: ≥45 HRC |
| Net weight | 44.42 lb / 20.15 kg |

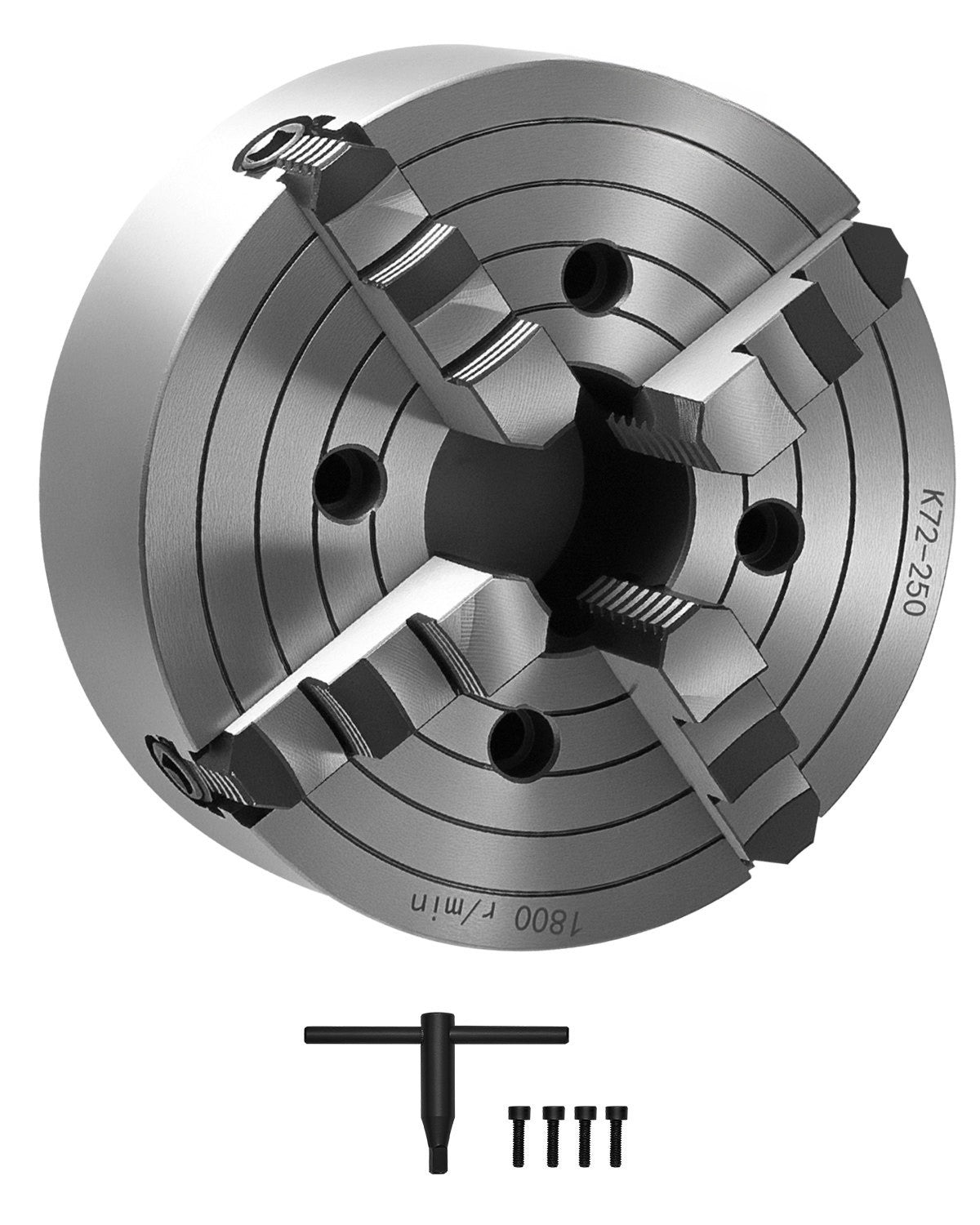

| In the box | T-key, fixing screws, reversible jaws |
