Thread Chaser Set, 49-Piece UNC UNF Metric, Case
Thread Chaser Set, 49-Piece UNC UNF Metric, Case

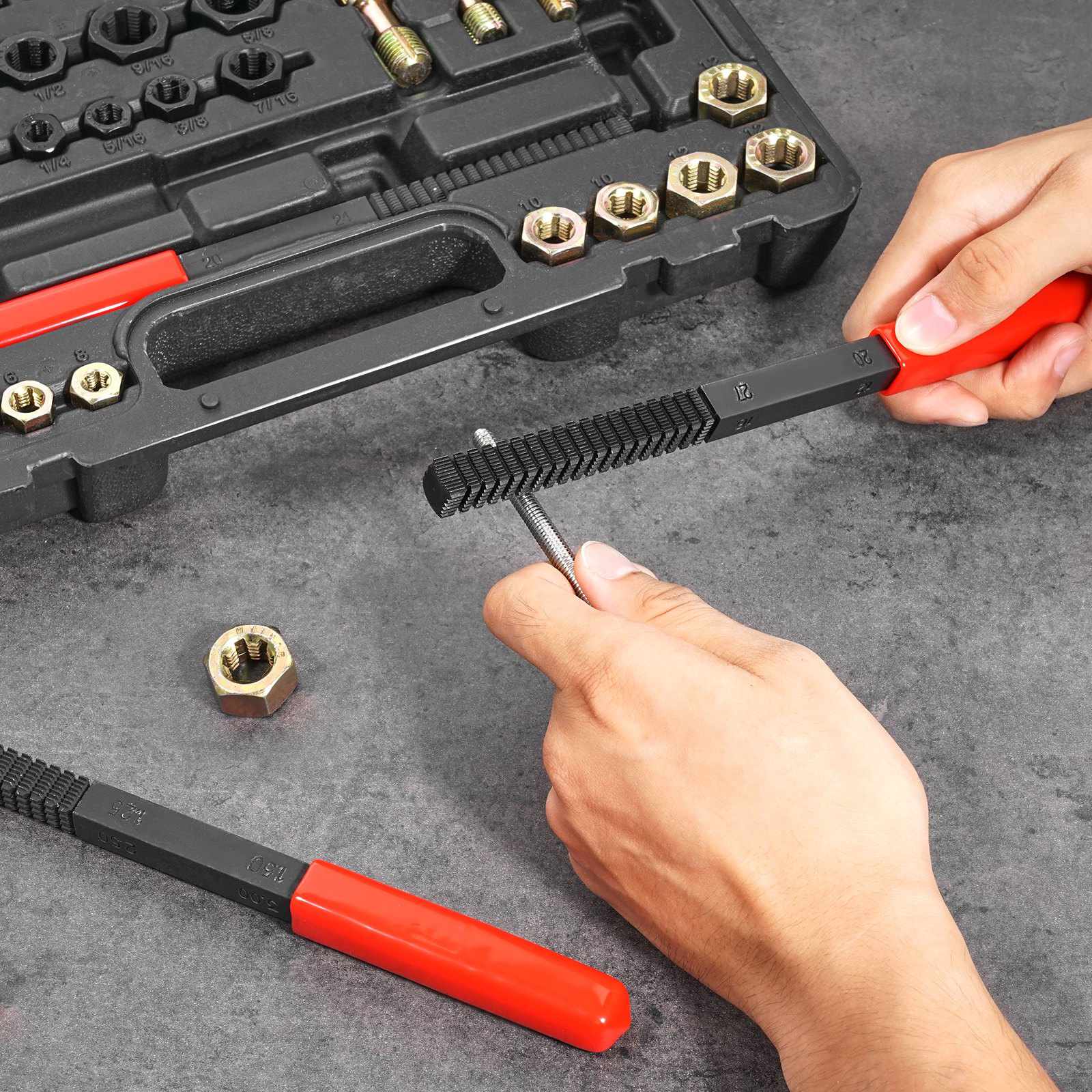

Thread chaser set restores damaged threads fast, helping you salvage bolts, studs, and tapped holes without replacing parts. This 49-piece... Read more
€115,99 €104,99
Pay securely with
- Free shipping
- 30-day returns
- Secure checkout
Specifications

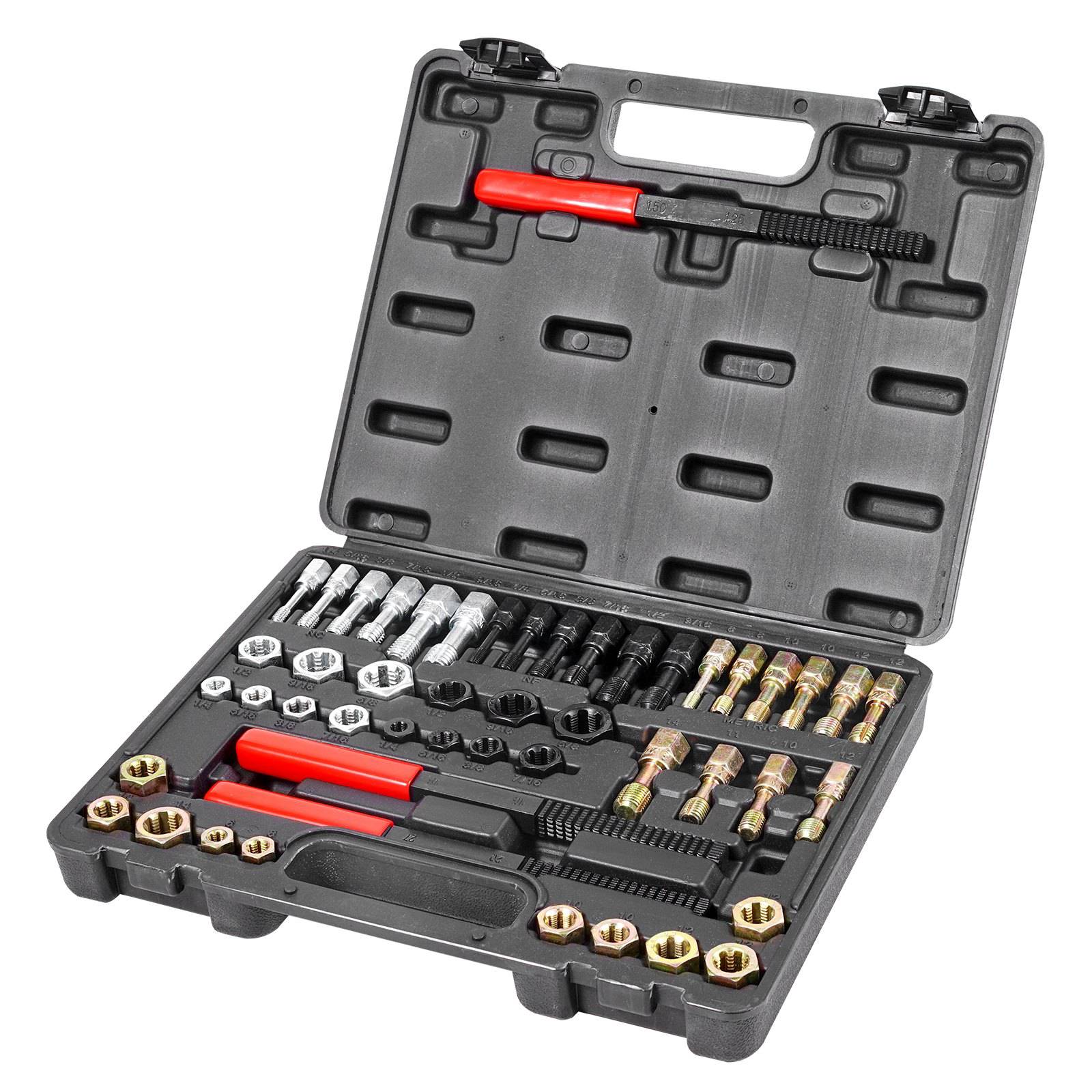

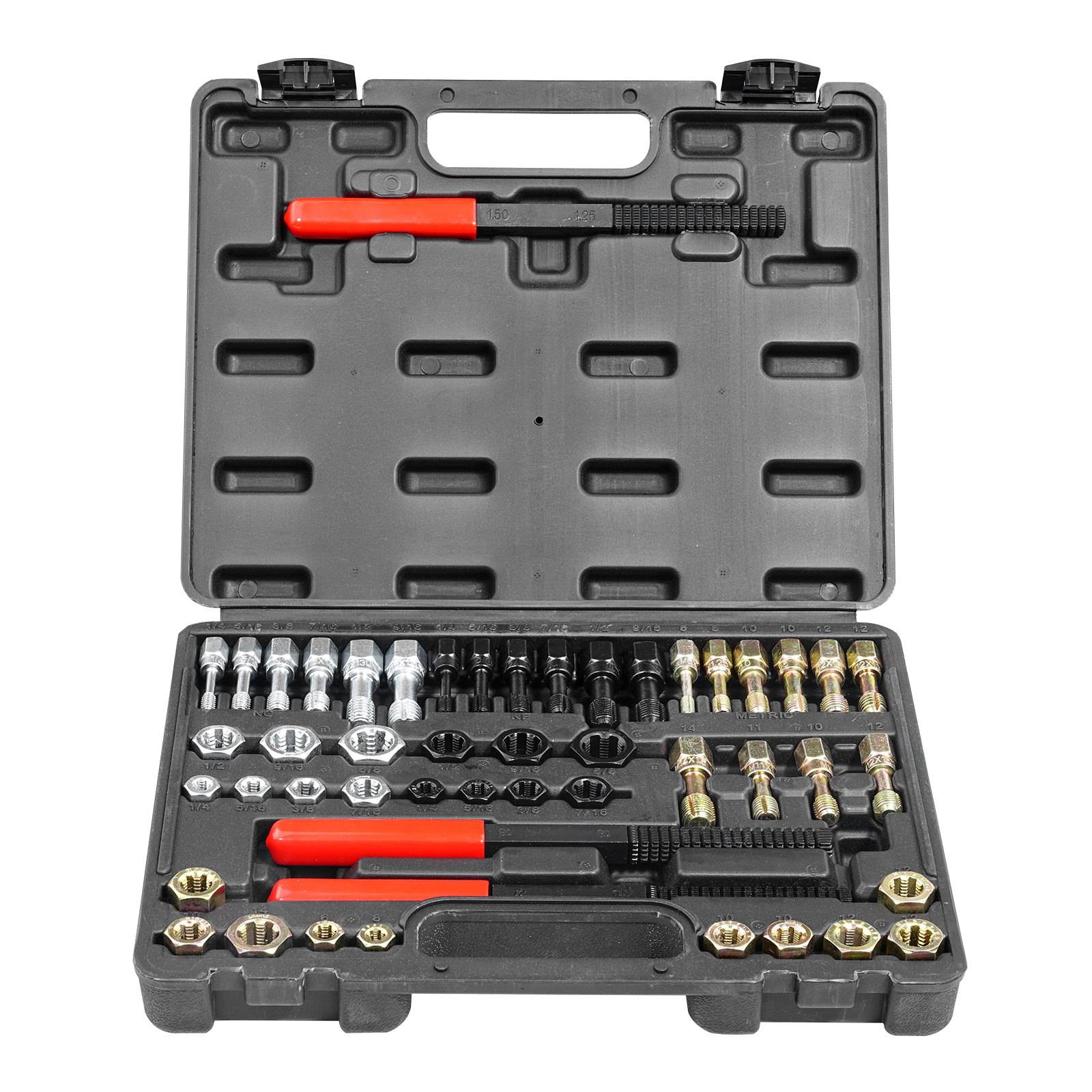

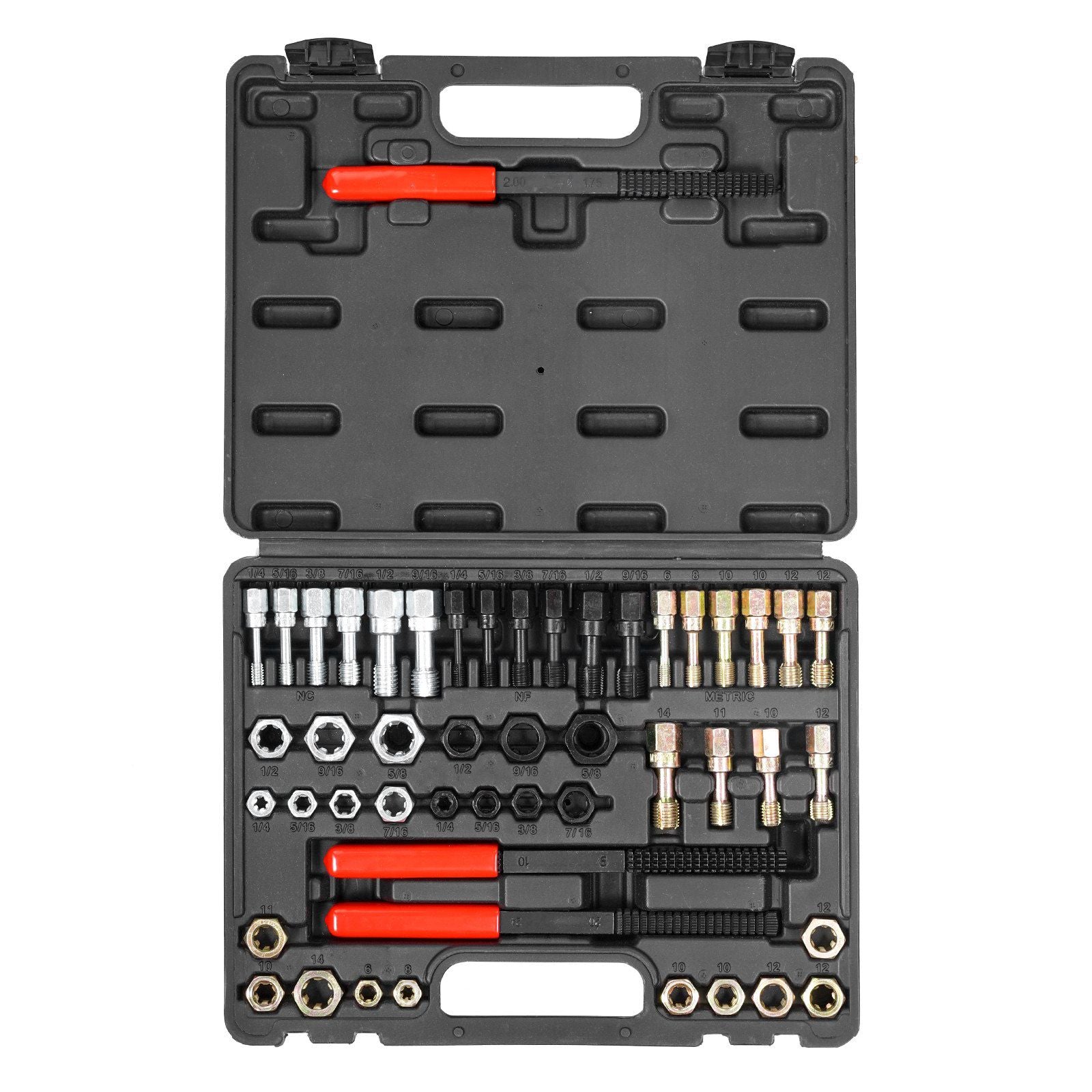

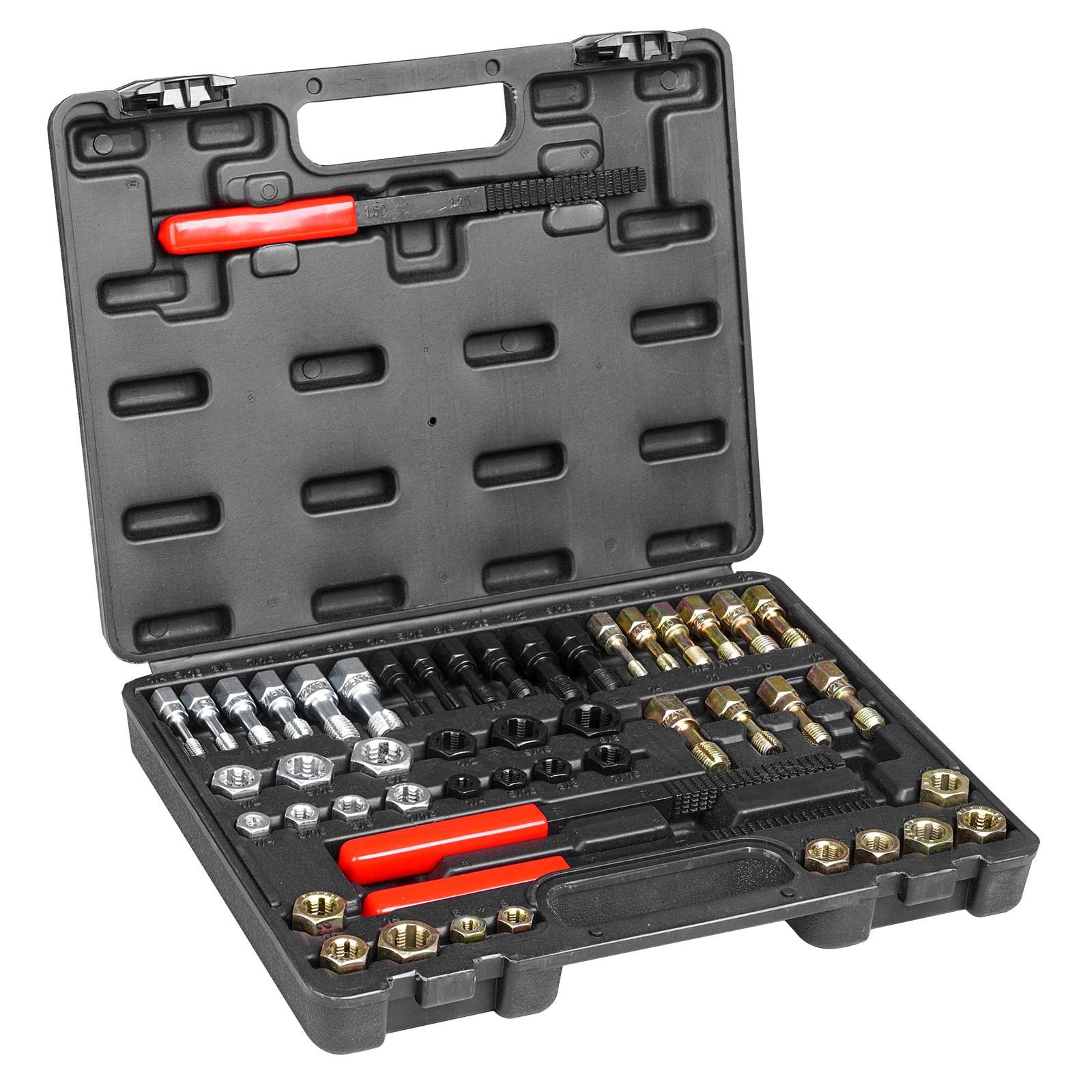

| Set size | 49 pieces (24 dies, 22 taps, 3 thread files) |
|---|---|
| Thread standards | UNC, UNF, Metric |
| Material | HSS (high-speed steel) |
| Hardness | HRC 55–62 |
| Colors | Red & Black case; dies/taps color-coded (UNC silver, UNF black, Metric gold) |
| UNC dies | 5/8"-11, 9/16"-12, 1/2"-13, 7/16"-14, 3/8"-16, 5/16"-18, 1/4"-20 |
| UNF dies | 5/8"-18, 9/16"-18, 1/2"-20, 7/16"-20, 3/8"-24, 5/16"-24, 1/4"-28 |
| Metric dies | M14x1.5, M12x1.75, M12x1.5, M12x1.25, M11x1.5, M10x1.5, M10x1.25, M10x1.0, M8x1.25, M6x1.0 |
| SAE thread file 1 | 9, 10, 12, 16, 20, 27, 28, 32 TPI |
| SAE thread file 2 | 11, 12, 13, 14, 16, 18, 20, 24 TPI |
| Metric thread file | 0.75, 1.0, 1.25, 1.50, 1.75, 2.00, 3.00 mm pitch |
