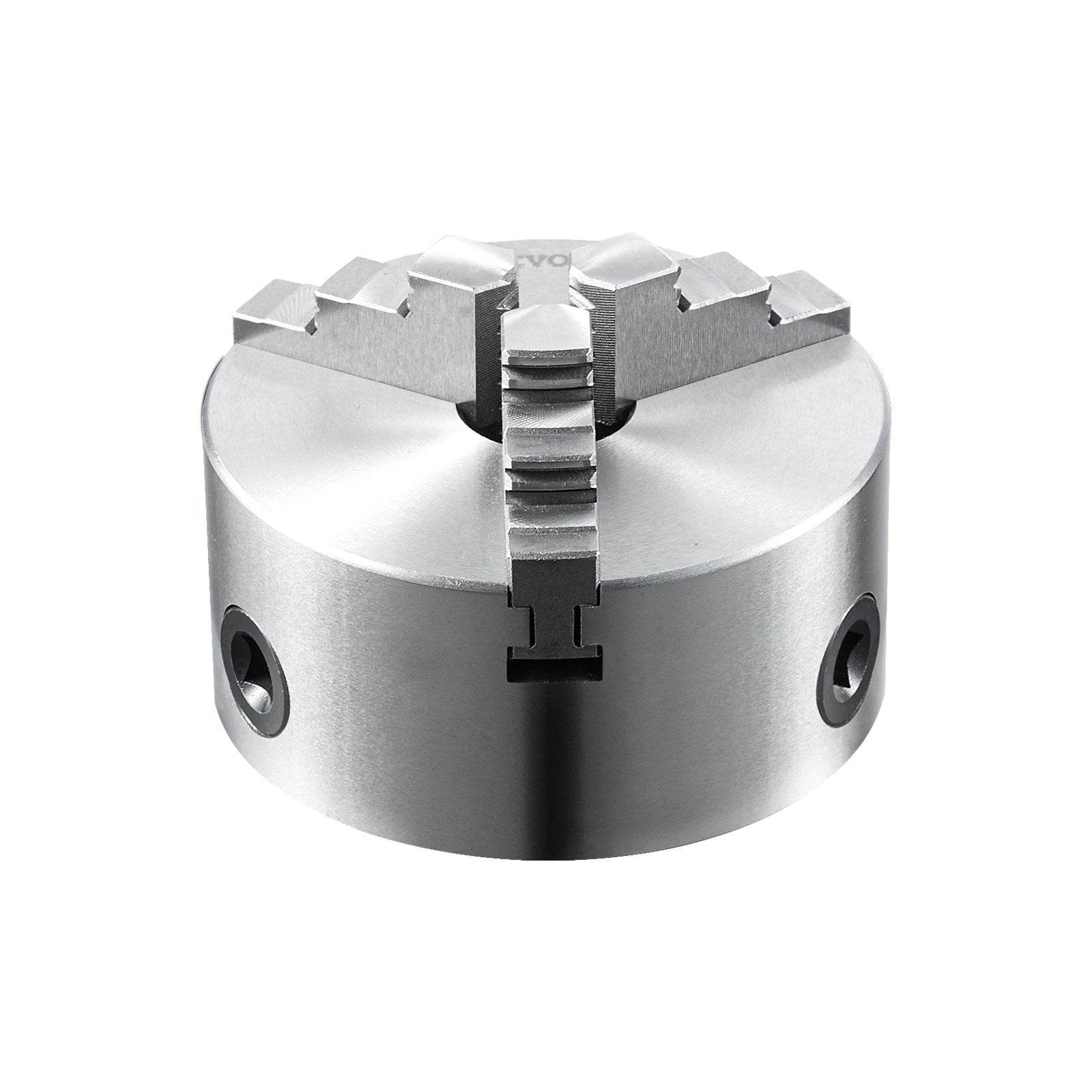

3-Jaw Lathe Chuck 4-Inch, Self-Centering, Reversible Jaws

3-Jaw Lathe Chuck 4-Inch, Self-Centering, Reversible Jaws

Product form
Item number: 11368849080647

3 jaw self centering lathe chuck delivers fast, repeatable clamping for accurate turning, milling, and drilling with less setup time.... Read more

Currently unavailable

€155,99  €140,99

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    Chuck type3-jaw self-centering
    Chuck outside diameter4 in (100 ± 5 mm)
    Clamping range (internal jaws)2–30 mm (0.078–1.18 in)
    Clamping range (external jaws)35–100 mm (1.38–4 in)
    BoreØ22 mm
    Body materialHT300
    Jaw material/hardness20Cr, ≥53 HRC
    Scroll material/hardness40Cr, ≥45 HRC
    Bearing tolerance≤0.05 mm (0.002 in)
    Fixing thread3 × M8
    Surface finishRa ≤ 0.8, oiled
    Product sizeØ100 × 120 mm
    Net weight2.96 kg (6.5 lb)

    Description

    3 jaw self centering lathe chuck delivers fast, repeatable clamping for accurate turning, milling, and drilling with less setup time. Built for small-to-large workpieces, this 4-inch chuck uses a hardened scroll and reversible jaws to cover internal and external gripping. A compact, shop-ready design pairs smooth T-key adjustment with stable concentric performance for cleaner cuts and consistent part holding across your machining workflow.

    When concentricity and secure grip matter, this 4-inch self-centering chuck helps keep your parts aligned and your workflow efficient. The geared scroll mechanism moves all three jaws together for predictable clamping, while the dual jaw sets expand what you can hold without swapping chucks. Keep it on your bench for prototyping, repair work, or production runs where consistency saves time. Grab yours today and upgrade your everyday workholding setup.

    Specifications
    • Delivers self-centering clamping to reduce recalibration and speed up changeovers
    • Fits internal and external gripping with reversible jaws for 2–100 mm workpiece range

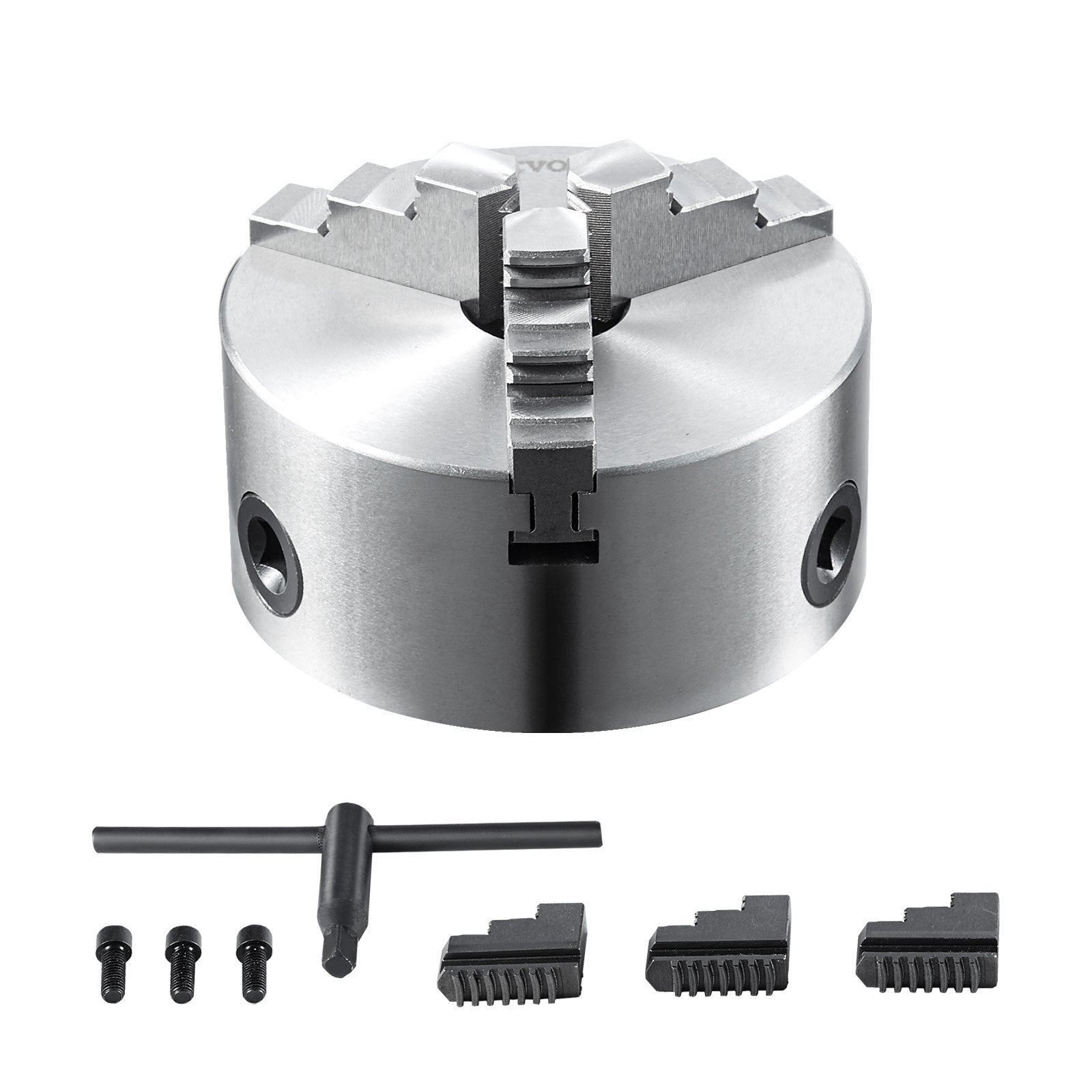

    • Includes T-key and fixing screws for straightforward install and quick jaw adjustment
    • Handles metalworking loads with hardened jaws and scroll for stable, repeatable holding
    • Supports lathes, machining centers, milling and drilling setups for versatile shop use
